WDSmax

Biosure WDS
Specification
Installation Photo
Download
Biosure WDS


WDS applied a revolutionary AOP (Advanced Oxidation Process) technology that replaces conventional UV or chemical dosing in post-filtration water and waterline sanitation treatment.The product is designed for easy integration into existing waterlines featuring automatic and on-demand water sanitation. With water based, electrochemically formed natural sanitizing agents including Dissolved Ozone and Active Chlorine the treatment offers both instant and residual sanitation. It works to protect against pathogens and biofilm formation in water systems.Exclusive Technology

















 Reach the Unreachable.













Simple Impactful. WDS MAX.

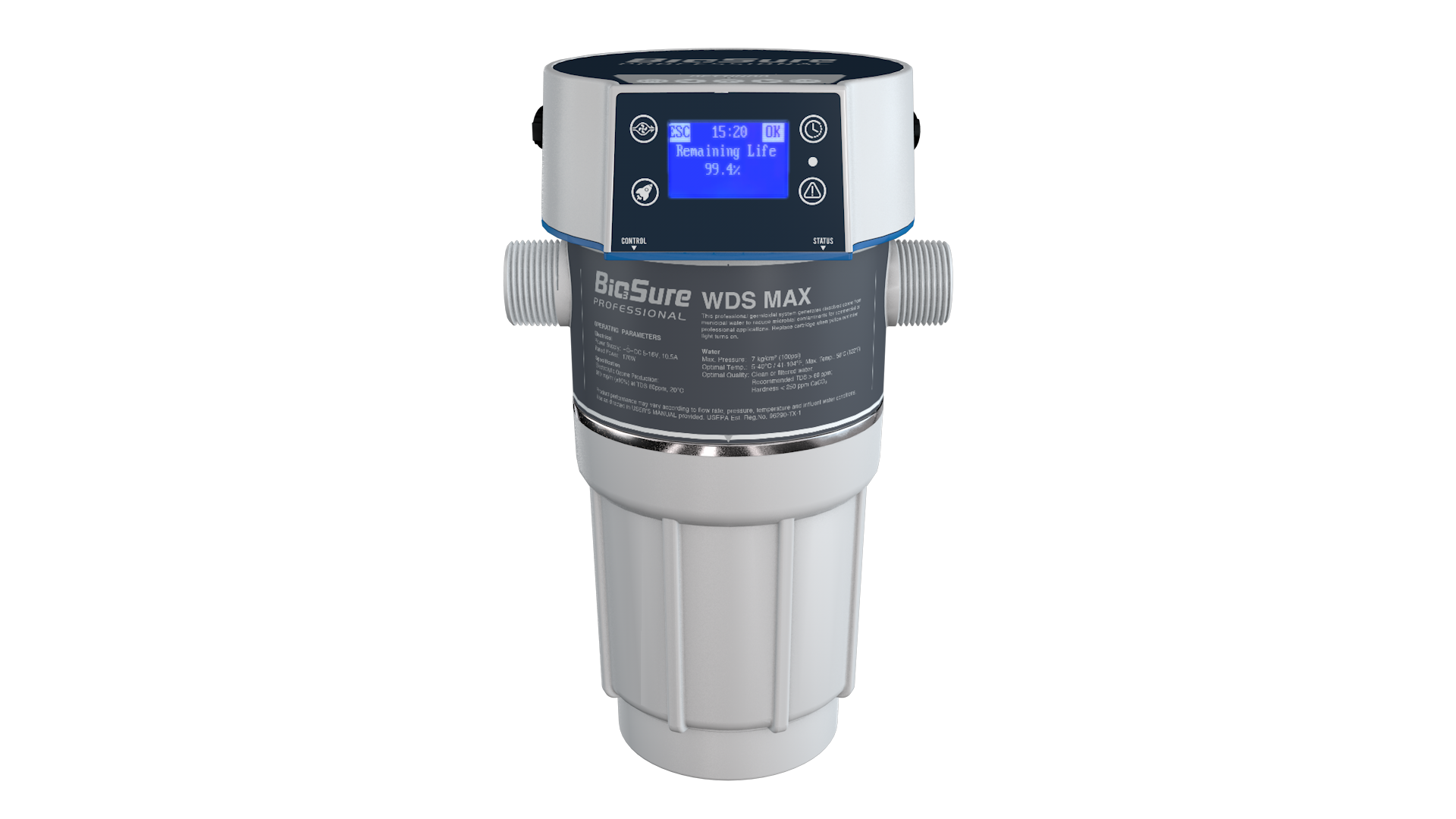

The Biosure WDSmax is the bigger brother of our highly respected Biosure WDS. The new WDSmax model takes the WDS performance to a higher level. Offering one Inch inlet and outlet water flow rated with produce 600mg fully disolved ozonated water at 60ppm conductivity in 20c water temperature. It represents an extremely cost effective full system upgrade.

Excellence Capable. We do.

Both and WDS and WDSmax remain one of the most cost-effective upgrades you can buy to improve your water dispenser device hygiene level or reduces unwanted microbial contaminants in filtered water and biofilm in waterlines, or alternatively providing ozonated sanitizing water for sanitation use.

Both products will improve all tap water hygiene level, water line to device, and network-based systems including all machine and dispenser, it is a full system upgrade improving all your link device unlike any other product on the market.

The new WDSmax is a significant step forward from WDS. Whilst utilizing the unique patent technology, the generator has been radically updated with increase 100% titanium capacity loading in generator. WDSmax is the ultimate highly dissolved ozonated water generator in the smallest from factor.

WDSmax represents an extremely cost-effective way to fully upgrade a complete water hygiene system. Advanced electrolytic ozone technology, Which features on demand contribution of reliable sanitizing benefits of reliable sanitizing benefits of dissolved ozone in safe manners in water dispensing and treatment applications as well as offering protection from dangerous microbial and biofilm.

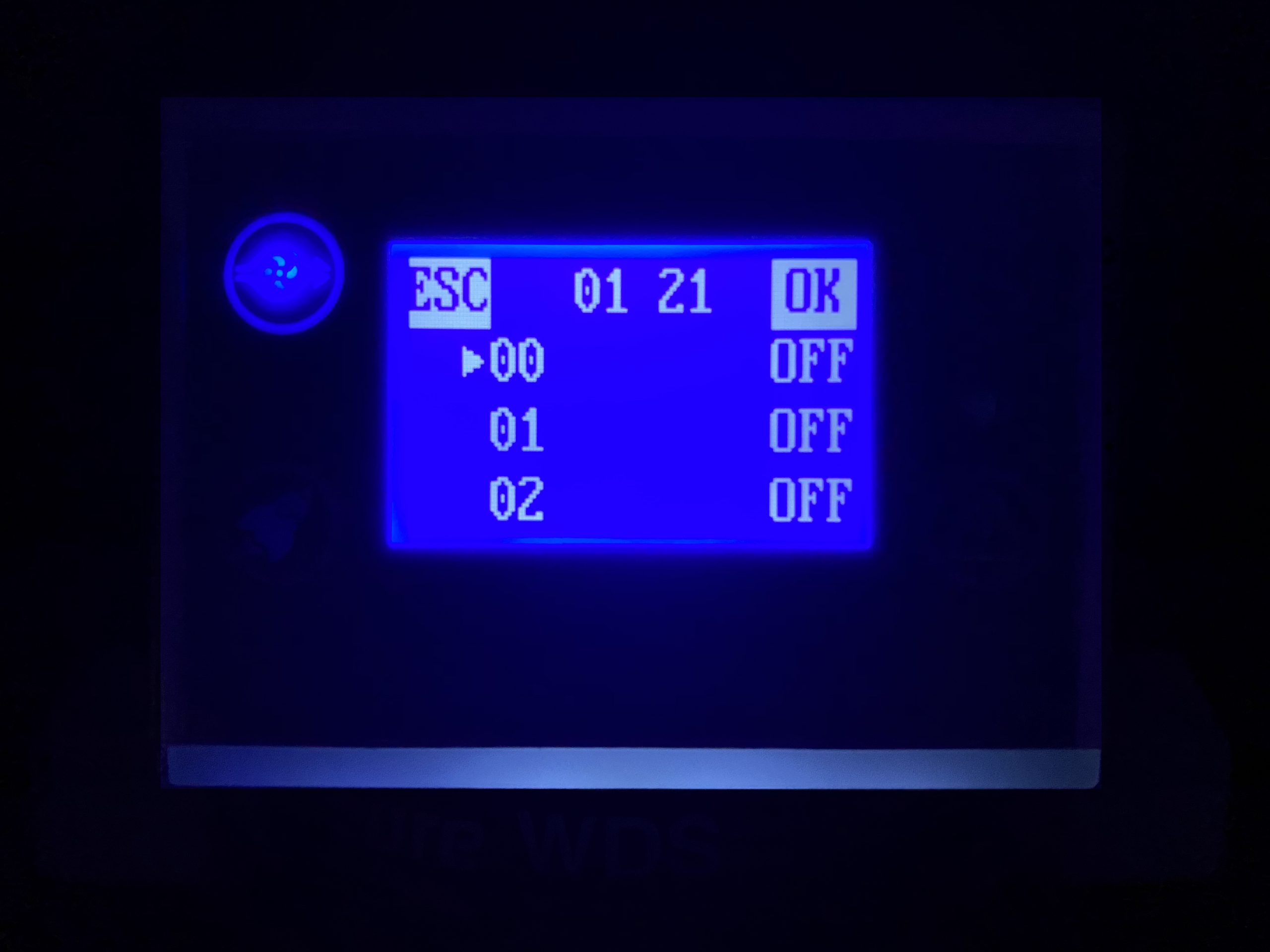

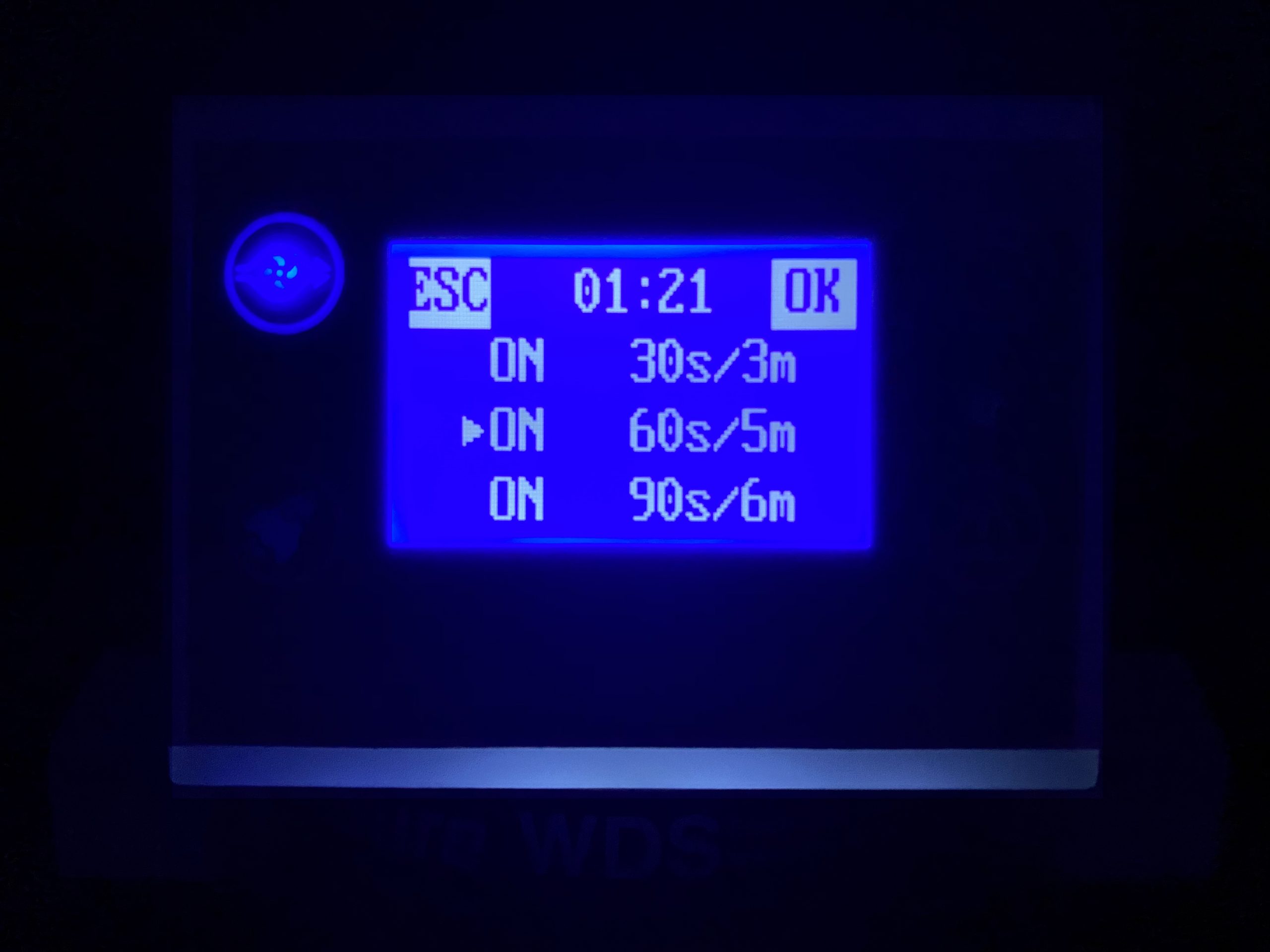

Personalize Your Setting

Setting among 24 hours to suit you best to begin your day.  Our software is powerful and easy for both end user and management team. We’ve simplified the setup process so you can configure operation automatically for different application.



Remove Biofilm Can Be Easier

System automated release ozone into a inline water network for the control water quality and biofilm.  Your WDS is designed to deliver an experience that is simple and easy to use. This is only possible through a combination of advanced technologies and sophisticated engineering. One important technology area is generator performance. WDS generator can be generate ozone instantly and program make device release ozone on time to prevent biofilm growth.

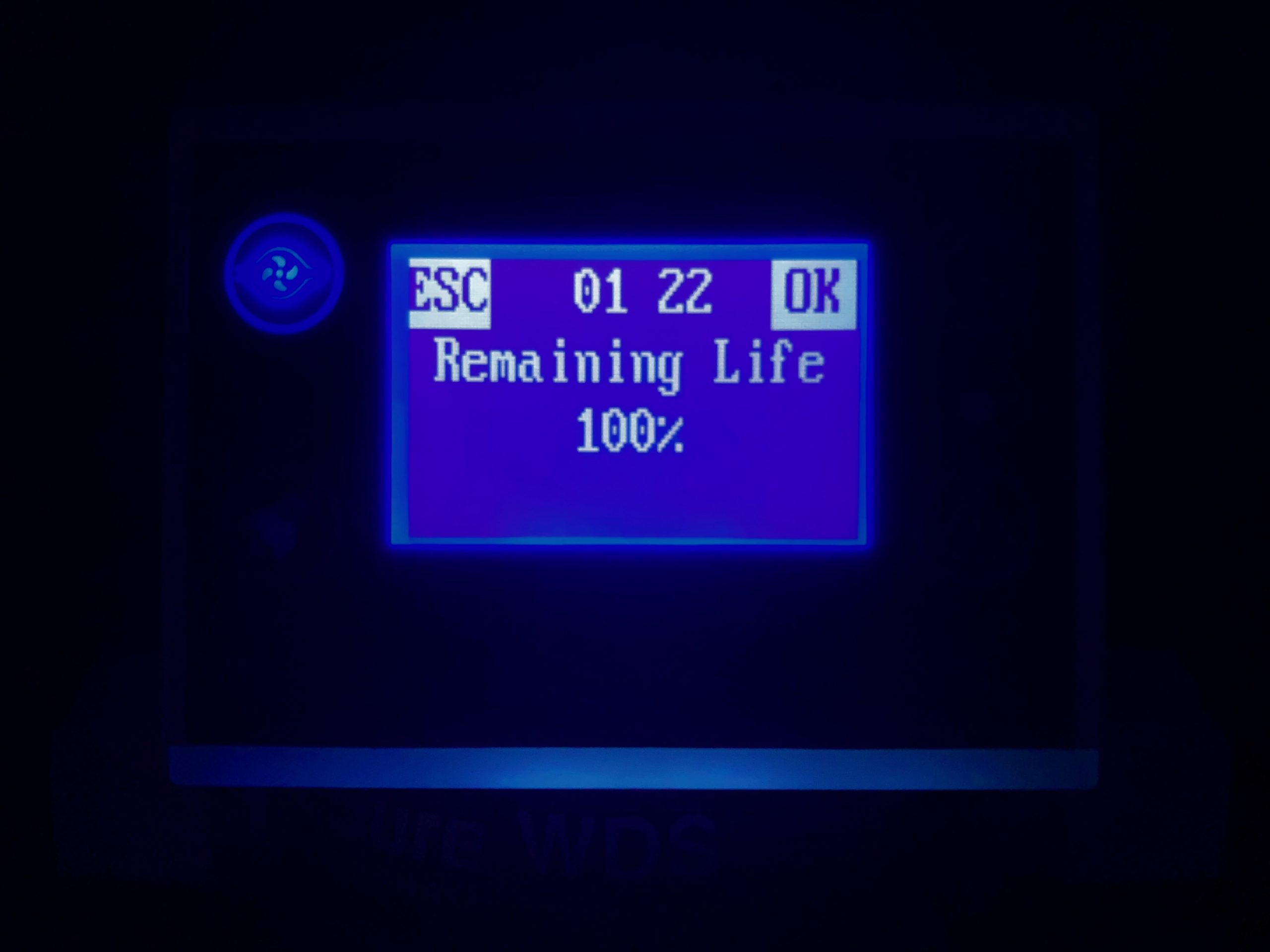

Generator Lifespan

You will know when you need to change the consumable and replace a generator takes you only a few minutes.  compared with older generations of generator technology, WDS EOG generator react faster, last longer and have higher decompose power capability for more different application in a lighter package.

–It’s hard to beat what BIOSURE is offering–

Compare with traditional chemical agents, ozone and hydroxyl radical is more efficient in oxidation. High ability of oxidation power eliminates viruses and bacteria without leaving any residue after sterilization.

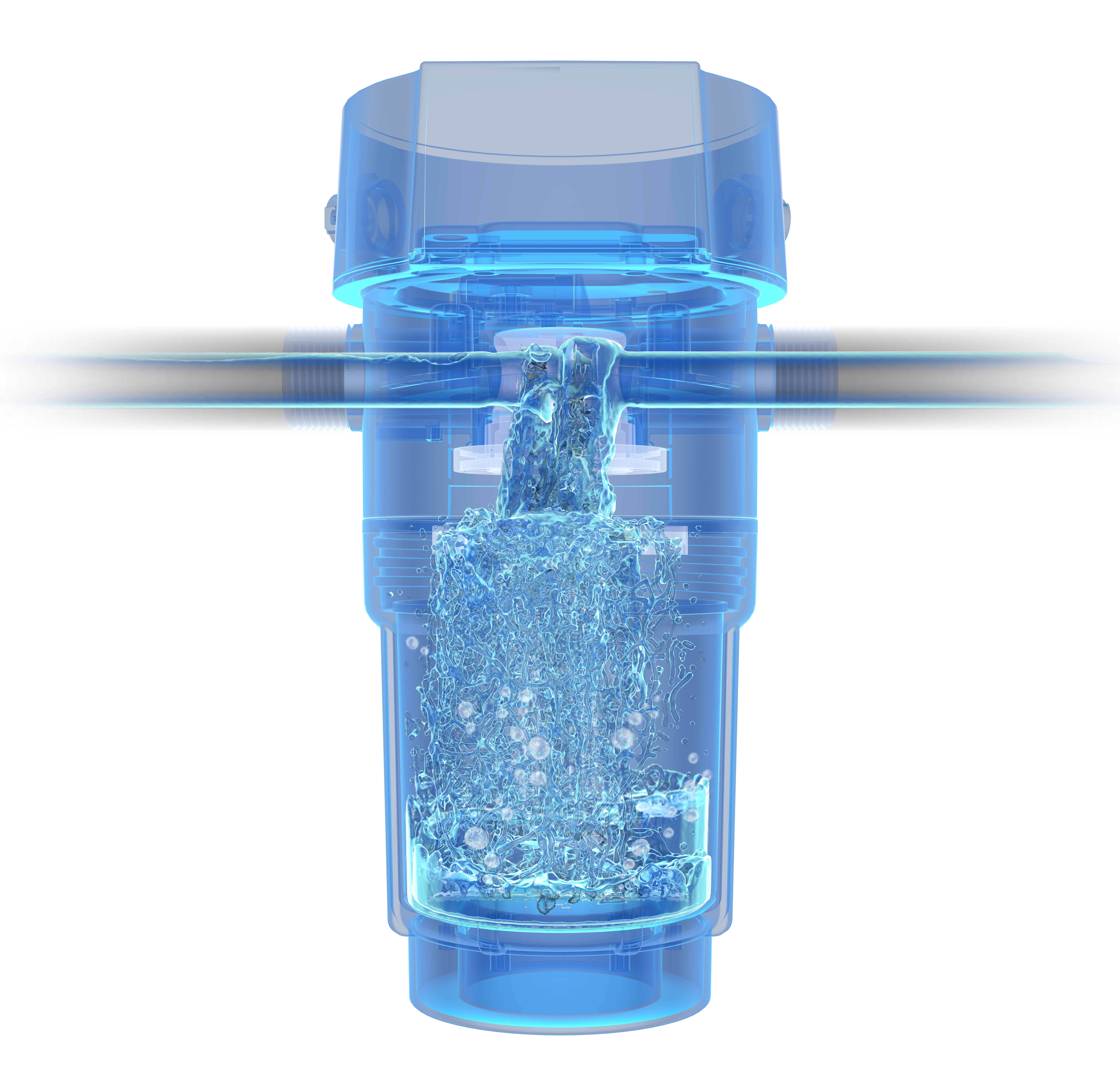

Biosure WDSmax applied a revolutionary AOP (Advanced Oxidation Process) technology that replaces conventional UV or chemical dosing in post-filtration water and waterline sanitation treatment.

  • Instantly convert water into a powerful natural fungicide (dissolved ozone water).
  • Using a patented membrane electrode to electrolyze the ozone generator, it is indeed a separation of hydrogen and oxygen.
  • Full-time self-monitoring, low maintenance rate, easy maintenance of product performance.
  • Not affected by air quality.
  • Better than traditional UV and corona discharge ozone.



Specification
ModelWDS EOS7178-PQX
Dissolved Ozone Concentration600 mg/hr (±10%) at 60 ppm, 20℃
(Depends on operation & flow rate)
Consumable life time1000 hours operation time
Water QualityClean or filtered water.
(Recommendation: filtered to 1μm,TDS > 60 ppm,
Hardness < 250 ppm as CaCO3)
Water FlowMin. 100 LPH (0.44 GPM)
Max. 4000 LPH (17.6 GPM)
Water PressureMin. 0.5 kg/cm2 (8 psi)
Max. 7.0 kg/cm2 (100 psi)
Water Optimal Temp.5°C – 40°C / 41°F – 104°F
Max.Temp.: 50°C (122°F)
Electrical PowerAdaptor Input : AC 100-120V or 220-240V, 50/60Hz
Adaptor Output : DC 5-16V, 10.5A
Electrical Rate170W
Ambient Air Temp.> 0°C – 40°C (> 32°F – 104°F)
Ambient Air Humidity0-90% non-condensing humidity
Dimensions W x D x H160 x 141.5 x 273.2 mm (6.3″ x 5.6″ x 10.8″)
Weight Net3.0 Kg (6.6 lbs)
Weight Filled4.0 Kg (8.8 lbs)
IP ClassMain Device: IP55 / Power Adaptor: IP65
Connections1” NPT Water Inlet & Outlet
Installation Photo



Download
EOS7178PQX Operation Manuel
Download PDF
EOS7178PQX Catalogue
Download PDF
