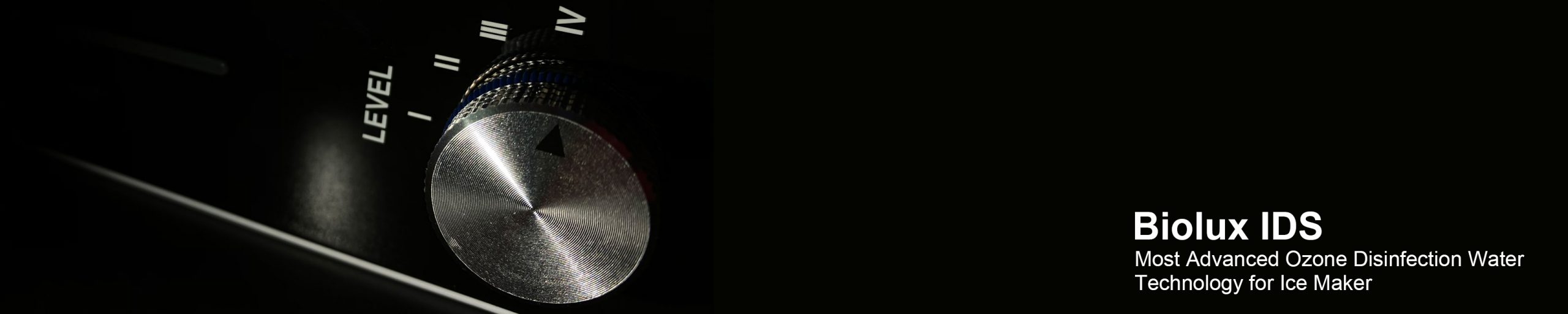

IDS
The new 4th generation Ice Disinfection System (”IDS”) from BioSure Professional is not only high performance and reliable. It is now more cost effective with outstanding ROI. Fully automatic sanitation is designed to eliminate hassle routine weekly cleaning and reduces conventional periodic chemical sanitation. Tested by leading independent laboratory for long lasting performance and safety gives professional operator a ”peace of mind”. IDS ensures guarantee pass to internal and external auditing anything. Ensuring ice hygiene can never get more simple and confidence.
Specification
| Product Name | IDS | |
| Model No. | EOS7170 | |
| Technology | Direct Electrolytic Ozone Generation (iEOG) | |
| NOx Level | 0% | |
| Location | Point-of-entry | |
| Application | • Work together with ice machine | |
| • Continuous biofilm removal & prevention in waterlines | ||
| • Adjustable dosage according to capacity of ice machine | ||
| Capacity | one to one | |
| Output | Gas | High purity ozone gas |
| Production | > 40mg/hr | |
| Purity | 20wt%, Nox free | |
| Concentration | Circulating water 0.1ppm (no ozone in ice) | |
| Input (Pure Water) | Qualtiy | Pure water (conductivity < 10µS/cm) |
| Volume | 550mL(0.145US gallon) | |
| Usage | 0.4ml/hr | |
| Refill method | Manual) | |
| Power Supply | AC 100 -240V or 220 -240V, 50/60Hz | |
| Rated Power | 8W | |
| Working temp | 1 – 35 °C (33.8 – 95 °F) | |
| Protection Class | IPX2 | |
| Materials | Casing | ABS, White |
| Tubing | PVC, PVDF, PTFE, SUS304 | |
| Dimensions (W x D x H) | W56 x D225 x H180 (mm) | |
| Weight | 2 kg (4.4 lb) | |
Application & Job Reference
User Manuel
| BioSure IDS (EOS7170) | Download PDF |
| Operation Manual | Download PDF |
